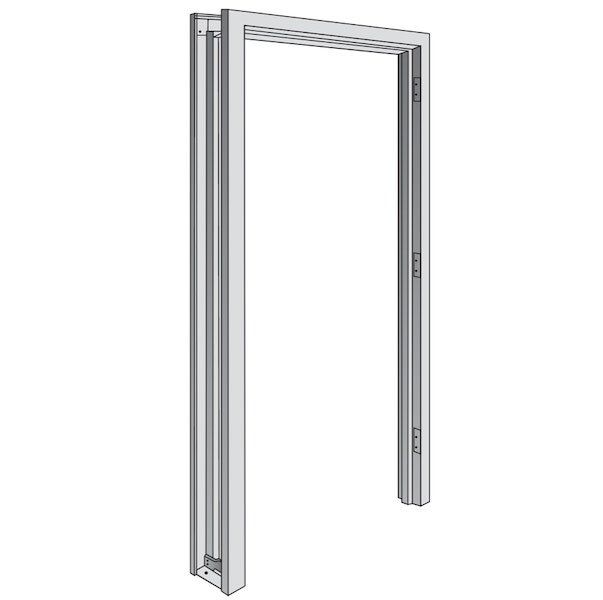

Welded Door Frame
High quality steel frames made here in Edmonton
Standard profiles include 4-3/4”, 5-3/4”, 6-3/4” and 8-3/4”.
Available in 14, 16 and 18 gauge wipe-coat galvanneal steel and can be manufactured to meet all architectural design specifications.
All welded corners are ground smooth and primed for a more attractive finish.
A special tab holding system provides additional strength and locks the frame in position on the stud.
Special mortar guards on hinge reinforcements to prevent motor fill-in.
10 gauge galvanized reinforcements add strength and help prevent sagging.
One-piece reinforcements are projection-welded in place to increase strength and rigidity.
16 gauge wipe-coat galvanneal floor anchor is welded in place for easier fastening.
5/8” stops provide a large surface for weather-stripping.
Frame is prepared for silencer bumper holes.
